Chamfering Machine CNC50_80_120D

Chamfering Machine CNC50_80_120D

Whatsapp：+86 18913625580
E-mail：jeff.jiang@yuetaimachine.com

Detail

No. Item Description
1 Model YT 50
Processing capacity Φ12-80mm
2 Suitable material Steel pipe, iron pipe, aluminum pipe, copper pipe, Stainless steel, bar etc
3 Working length 200-600mm
4 Main motor power 3HP X 6P
Compressed air 6-9kgs/cm2, 120ml/min
5 Machine weight 800kg
6 Working precision ±0.1mm
7 Machine dimension 1300x900x1500mm
Chamfering Machine CNC50_80_120D

Double Head Chamfering Machine

  • Inside + Outside Chamfering
  • Facing
  • Centering
  • Deep Chamfering
  • Radius Chamfering
  • Length Measuring

Double Head Chamfering Machine

  • Fully automatic chamfering and Length Measuring system, with 2 types of loading magazine:
  • Rack – Sliding Magazine ( Standard )
  • BTM – Bundle Loading Magazine (Optional )

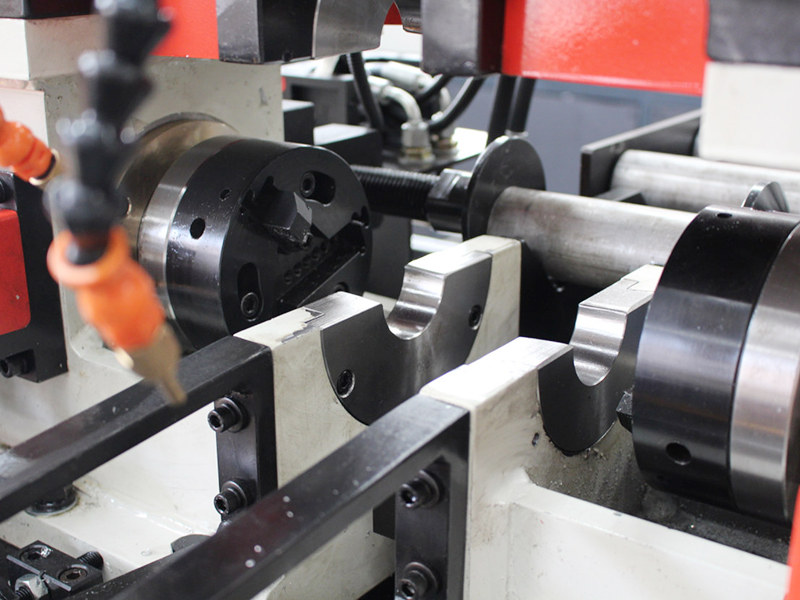

Chamfering Machine CNC50_80_120D1

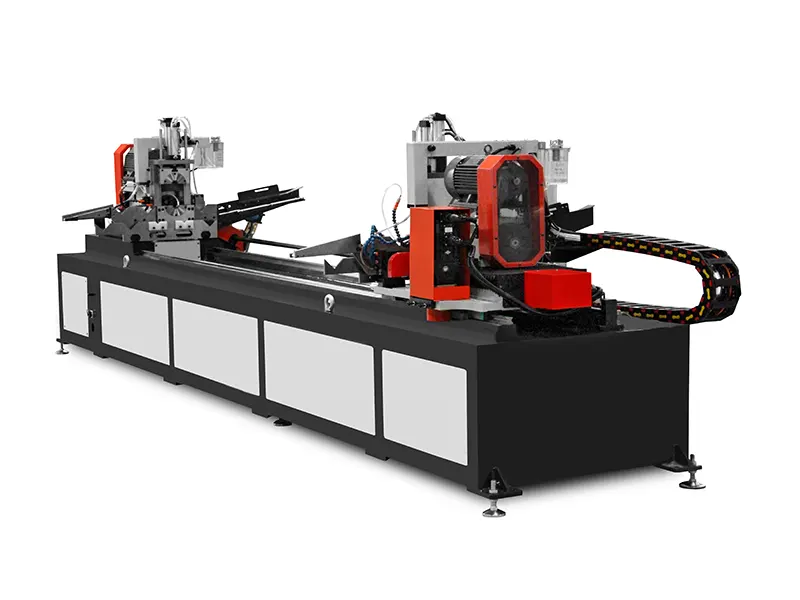

Chamfering Machine CNC50_80_120D2

Double Head Chamfering Machine

  • External and internal chamfering facing with length measuring in 1 process for both sides of the tube, with optional radius (round) chamfering

Double Head Chamfering Machine

  • It is possible to simultaneously chamfer both ends of a tube, with up to 3000 mm in working length, and measure their lengths with tolerances as low as +- 0.02 mm

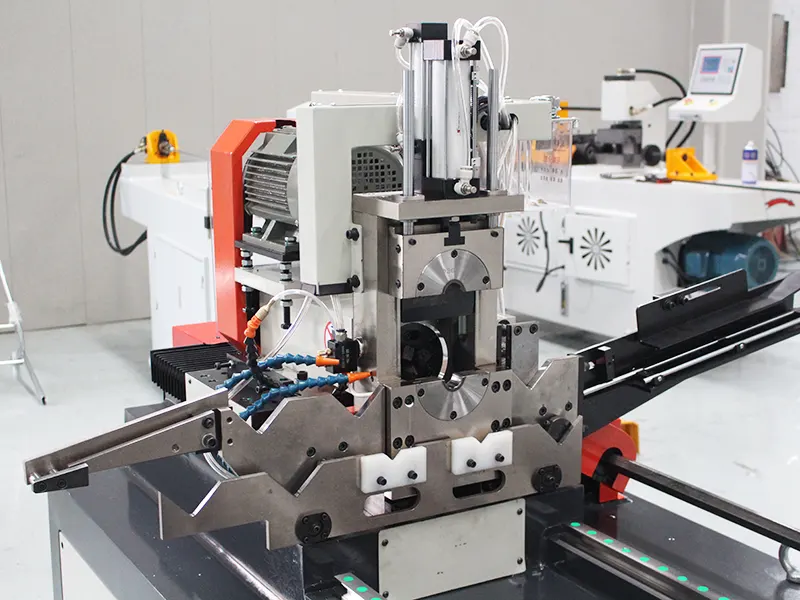

Chamfering Machine CNC50_80_120D3
Application Industry

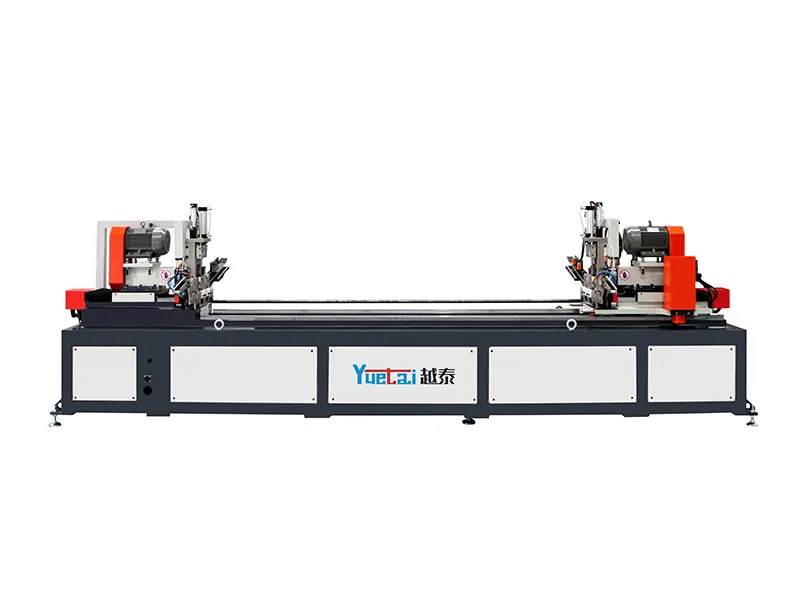

Chamfering Machine CNC50_80_120D4

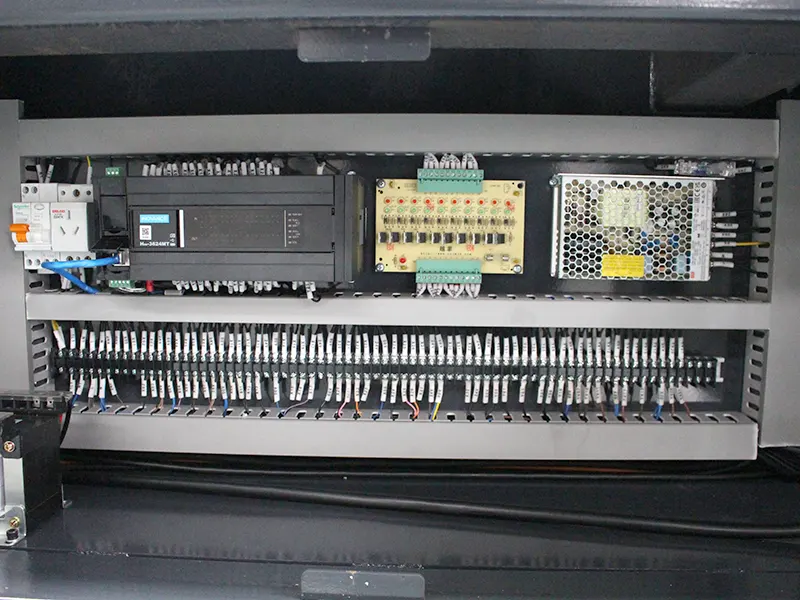

Chamfering Machine CNC50_80_120D5

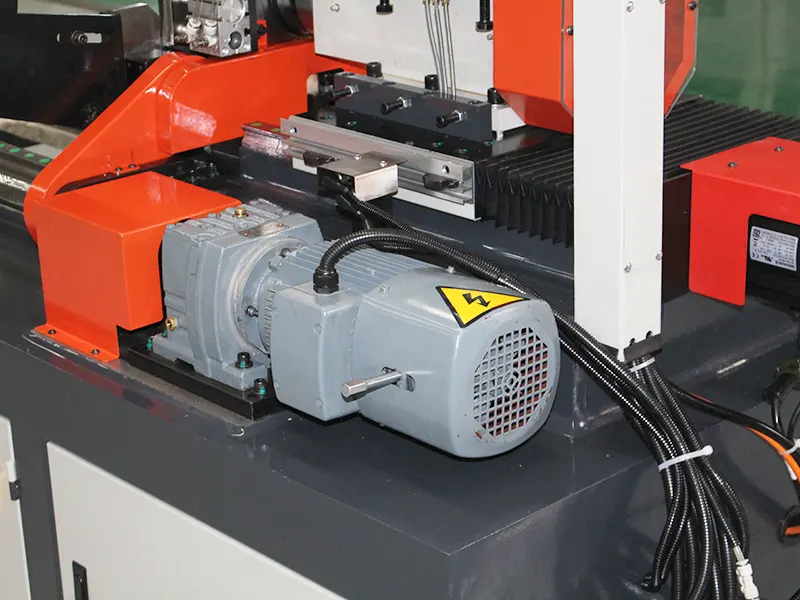

Chamfering Machine CNC50_80_120D6
