Left and Right Series

Left and Right Series

Whatsapp：+86 18913625580
E-mail：jeff.jiang@yuetaimachine.com

Detail

No. Item Description
Model 25CNC 38CNC 50CNC 63CNC 75CNC 89CNC 114CNC 168CNC 219CNC
1 Max Bending capacity Round tube Φ25x2mm Round tube Φ38x2mm Round tube Φ50x2.5mm Round tube Φ63x4mm Round tube Φ75x4mm Round tube Φ89x6mm Round tube Φ114x8mm Round tube Φ168x14mm Round tube Φ219x16mm
2 Max Bending Radius 280 280 280 350 400 450 520 750 800
3 Min. Bending Radius 1.2D 1.2D 1.2D 1.2D 1.2D 1.2D 1.2D 1.2D 1.2D
4 Standard Mandrel Length 2200mm 2500mm 2800mm 3000mm 3200mm 3500mm 4500mm 5000mm 6000mm
5 Bending Accuracy ±0.1
Control Panel Mitsubishi PLC
Method of Input Data Coordinate (X,Y,Z)
Working Value(Y,B,C)
Left and Right Series
CNC Full Automatic Bending Machine

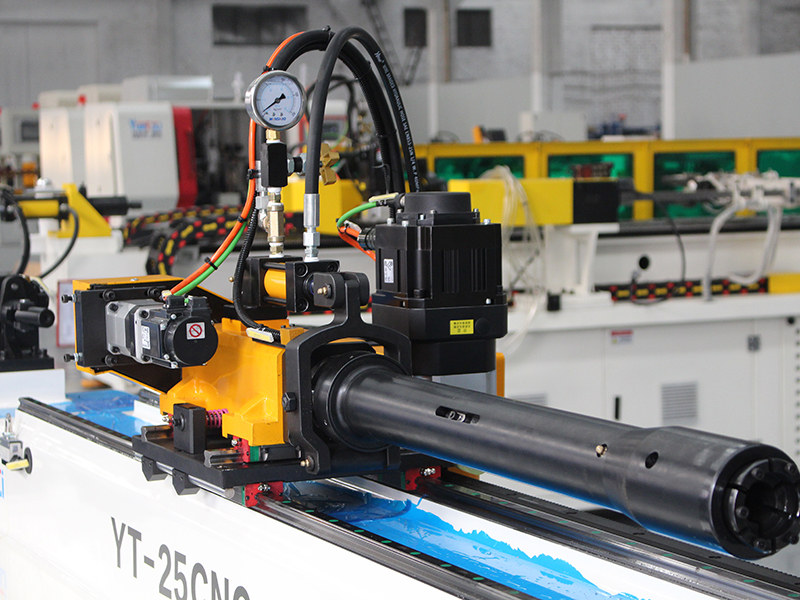

  • Equipped with 3 4 electric CNC axes

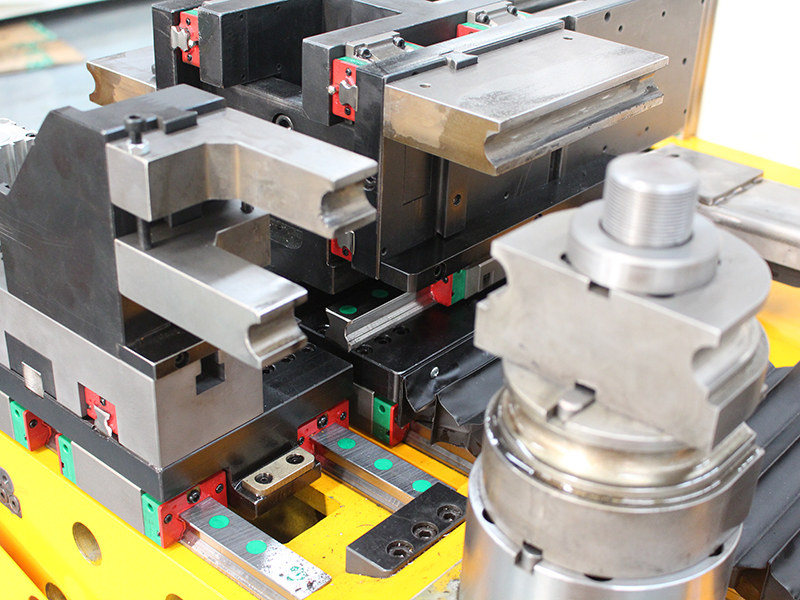

  • Multiple tube bending stacks
  • Yuetai tube benders can offer one of the highest performance solutions available in the market

CNC Full Automatic Bending Machine

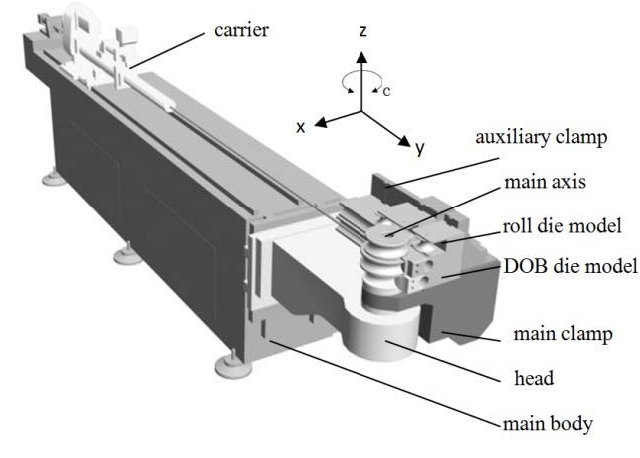

  • Side positioned bending head and carriage
  • Centralized lubrication for sliding area
    Automatic mandrel lubrication
Left and Right Series1
Left and Right Series2
CNC Full Automatic Bending Machine

  • Controls software

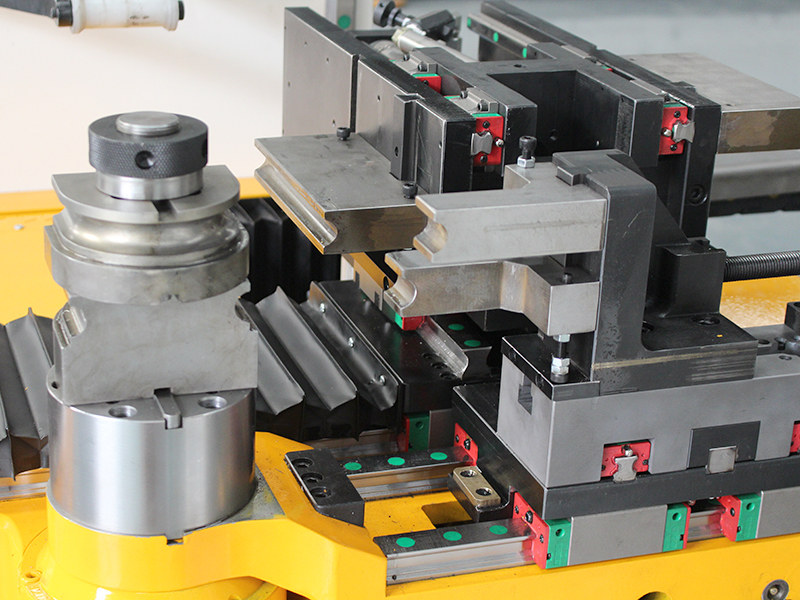

  • Single or multi-stacks
  • Independent pressure die system for each tube bending stack
CNC Full Automatic Bending Machine

  • Wiper die seat and lubrication

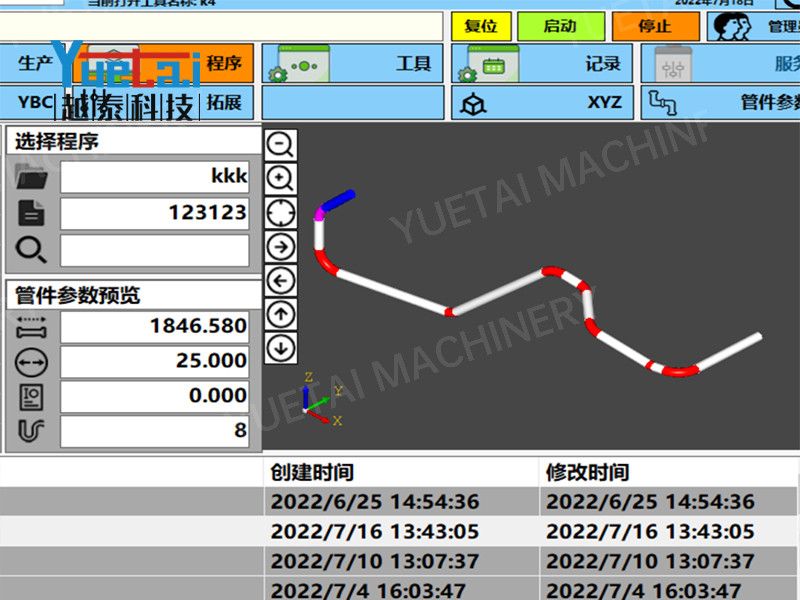

    3D Display and Rotation of Parts
  • XYZ and YBC coordinates conversion
    Mirroring and image reversal of parts
Left and Right Series3
Left and Right Series4

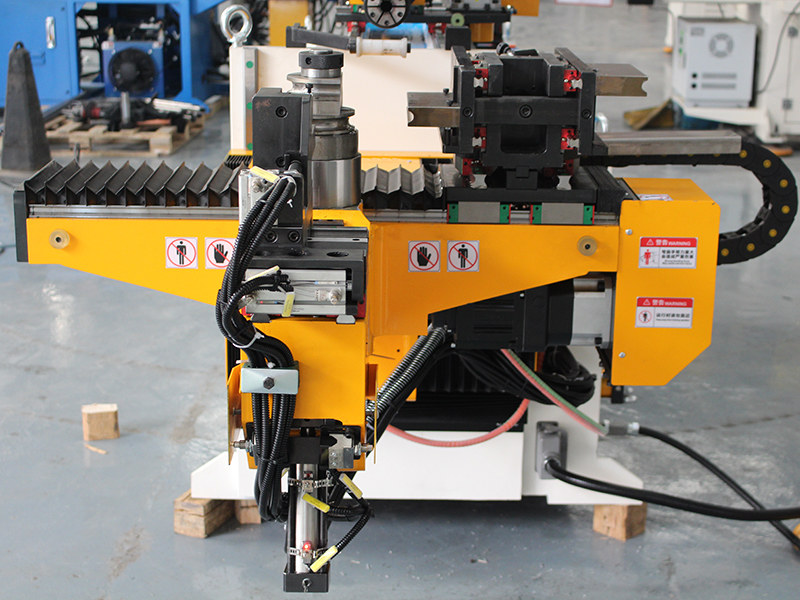

CNC Full Automatic Bending Machine

  • Fully Automatic and Cost-Effective.
  • This Pipe Bending line equipped with 3 programmable axes:

Feeding – Electric Servo;
Rotation – Electric Servo;
Tube Bending – Hydraulic (NC).
