Circular Saw Cutting Machine NC Serices 315B

Circular Saw Cutting Machine NC Serices 315B

Whatsapp：+86 18913625580
E-mail：jeff.jiang@yuetaimachine.com

Detail

Main Model YT-315B Remarks
Sawing Capacity 90° 45° Manual Feed
Auto Clamp
Auto Cut
□ 80X80 mm 60X80 mm
○ Φ90 mm Φ80 mm
● Φ30 mm Φ25 mm
■ 35X35 mm 35X35 mm

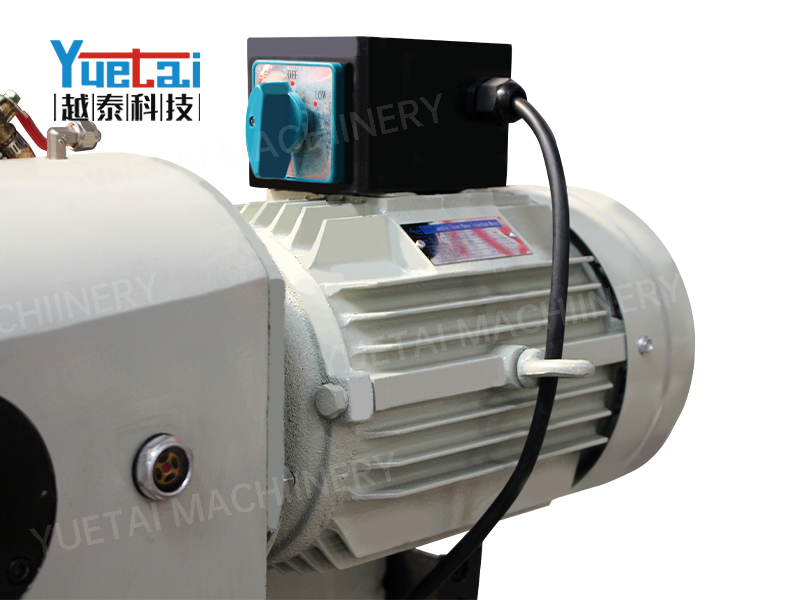

Motor Power 2.4/3.0Kw
Rotating Speed 96/48RPM
Max Clamp Φ100
Saw Blade Diameter Φ 250-325
Dimension 500mmX550mmX1700mm
Weight 260Kg
Circular Saw Cutting Machine NC Serices 315B
Semi Automatic Pneumatic Pipe Cutting Machine

  • Manual operation.

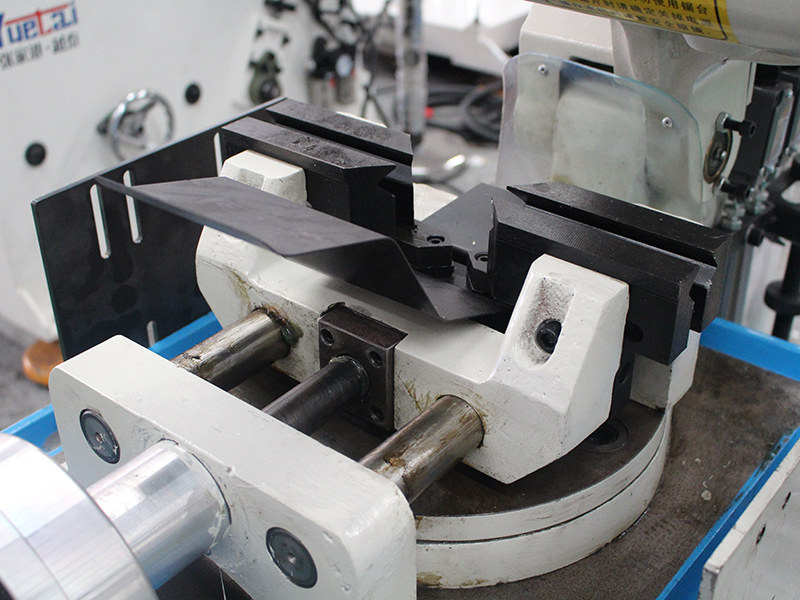

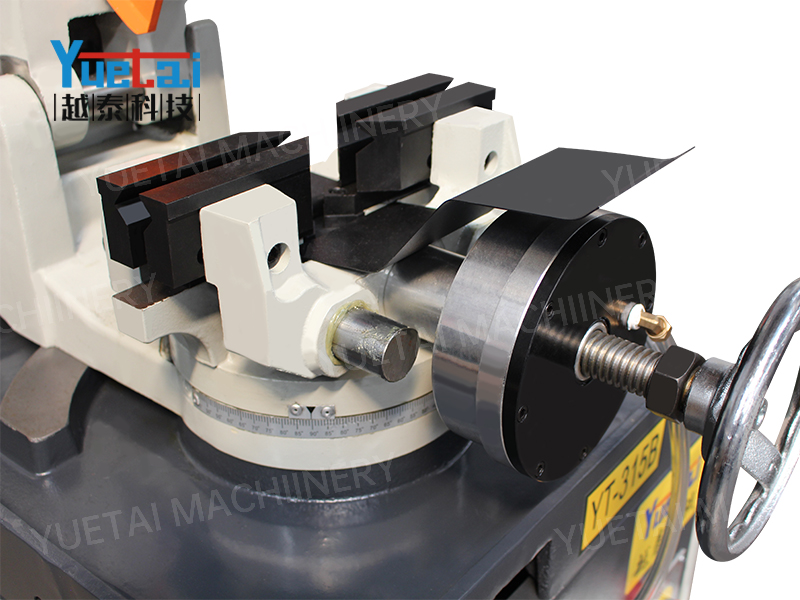

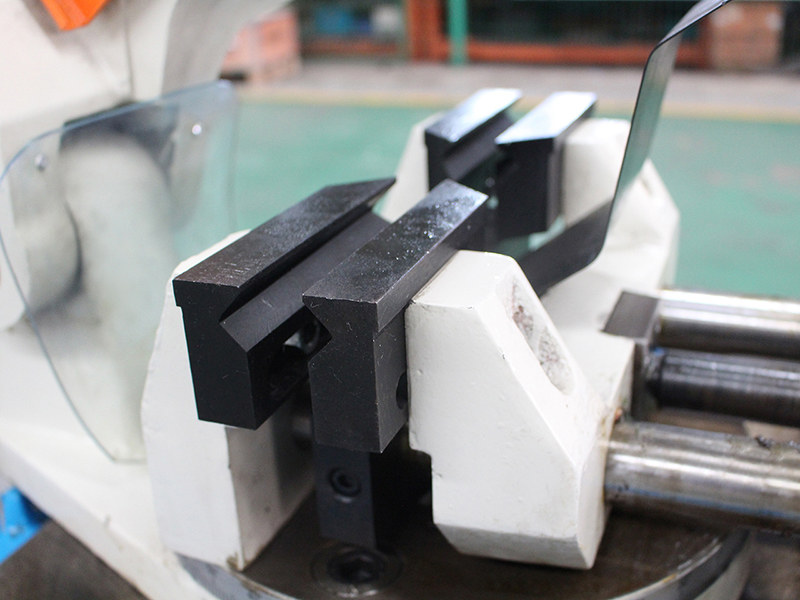

  • Double vises.
  • Sawblade HSS Ø250~ Ø275mm,Ø250mm.(standard)
  • 2 Speeds.
  • 220V, single phase, 60 RPM. (optional)
  • Movable guard. (optional)
Semi Automatic Pneumatic Pipe Cutting Machine

  • Automatic pneumatic single clamping.
  • Automatic cutting feed.
  • Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
  • 2 Speeds.
  • Movable guard. (optional)
Circular Saw Cutting Machine NC Serices 315B1
Circular Saw Cutting Machine NC Serices 315B2
Semi Automatic Pneumatic Pipe Cutting Machine

  • Semi-automatic operation for clamping and cutting off
  • Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
  • Saw blade, movable safety guard, cutting fluid.
Semi Automatic Pneumatic Pipe Cutting Machine

  • Motor, switch, complete cooling system, adjustable stop, service tools.
  • Automatic pneumatic double clamping
  • Manual feed materials

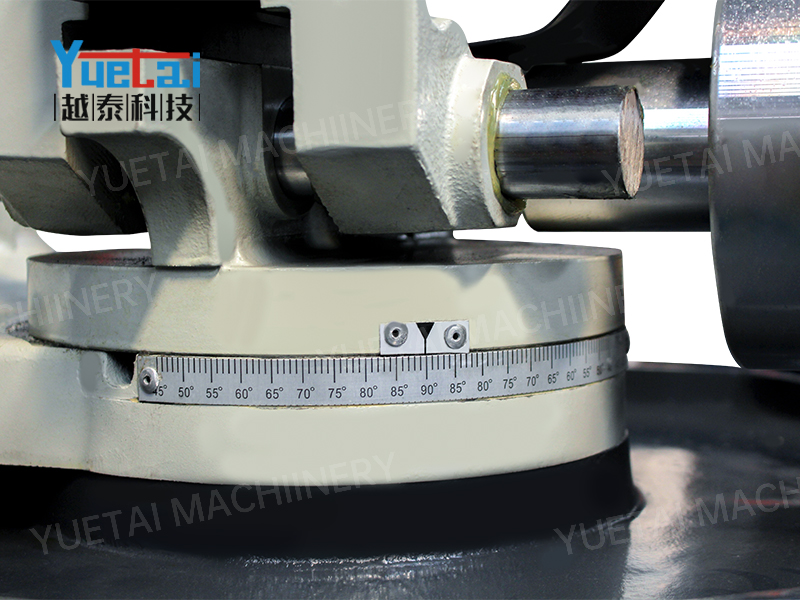

    Cutting degree 45°-90°
Circular Saw Cutting Machine NC Serices 315B3

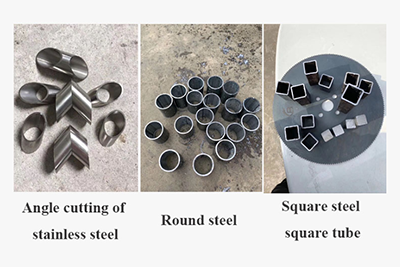

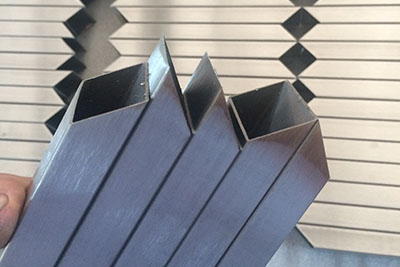

Application Industry

Circular Saw Cutting Machine NC Serices 315B4
Circular Saw Cutting Machine NC Serices 315B5
Circular Saw Cutting Machine NC Serices 315B6
